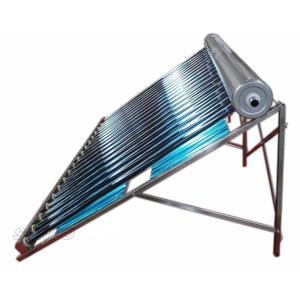

Name: glass vacuum tube low pressure solar collector with reflector
Brand: Raven New Energy
Price: 300 USD

Brand Name : Raven New Energy

Model Number : RNE-HCA-20

Certification : CE

Place of Origin : CHINA

MOQ : 1SET

Price : 300USD/SET FOB

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 2000 Sets per month

Delivery Time : 15 days

Packaging Details : cartons , plywood box

Tube number : 20 tubes

solar collector type : heat pipe solar collector

solar vacuum tube : 58/1800 three target

stand frame : Aluminum alloy 2.0mm thick , 30/ 45 degree

Manifold case : Aluminum alloy 2.0mm

Insulation : rock wool 40MM

Warranty : 5 years

working pressure : 8bar

Contact Now

Glass vacuum tube low pressure solar collector with reflector

Specialty:

1. High heat collecting efficiency and high temperature output.

2. Quick operation under pressure.

3. Strong freezing resistance,no water leaking problem.

4. Easy installation, convenient maintenance.

5. Completely combined with building, install on wall, roof or ground etc.

Technical specification:

1. Outer manifold material: SUS304-2B stainless steel

2. Inner tank material : SUS304-2B stainless steel 0.41mm

3. Insulation material: Polyurethane faom

6. Frame material: Aluminum alloy or SUS304-2B stainless steel

7. Seal material: Stabilized high temperature silicon

8. Vacuum tube material: borosilicate glass 3.3; AL-SS-CU absorb coating

9. Collector mounting: flat roof or inclined roof

Production flows

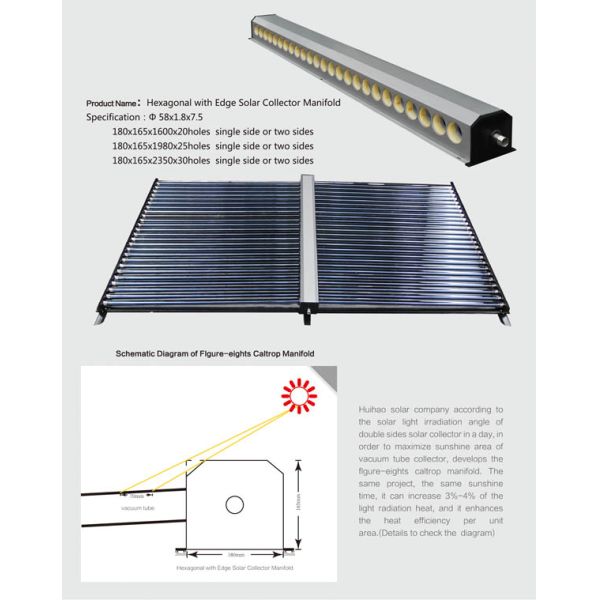

glass vacuum tube low pressure solar collector with reflector

glass vacuum tube low pressure solar collector with reflector Images
