Borosilicate glass solar evacuated tube

Name: Borosilicate glass solar evacuated tube
Brand: RAVEN NEW ENERGY
Price: 1.8 USD

Wholesale Borosilicate glass solar evacuated tube from china suppliers

Brand Name : RAVEN NEW ENERGY

Model Number : 58/1800

Certification : CE

Place of Origin : CHINA

MOQ : 50pcs

Price : 1.8USD-4USD/PCS

Payment Terms : Western Union, T/T

Supply Ability : 200000PCS/ MONTH

Delivery Time : 10days

Packaging Details : carton

Name : solar vacuum tube

Model : 58/1800

Material : high borosilicate glass 3.3, 1.6mm

Outer tube diameter : 58mm

Inner tube diameter : 47mm

Coating : three target , Cu/ALN-SS/ALN

Vacuum degree : 3.5x10-3Pa

Tube length : 1800mm

Absorption rate : 93%

Emission rate : 4%

Contact Now

Solar evacuated tube

Solar Vacuum Tube
Model		47*1500
Outer Diameter/Length of Tube			φ47mm/1500mm
Structure		All glass double tube co-axial
Glass material		High borosilicate 3.3 glass
Absorptive coating property	Material	Cu/SS-ALN(H)/SS-ALN(L)AlN
	Sediment method	3 high magnertron sputtering plation
	Specific absorption	As=0.93～0.96(AM1.5)
	Emission ratio	∑h=0.04～0.0.06(80°C±5°C)
Vacuum degree		P≤5×10-3Pa
Idle sunning property parameters		Y=200~300㎡.℃/KW
Solar irradiation for obtaining a preset water temperature		H≤4.7MJ/㎡(Φ58), H≤3.71~4.2MJ/㎡
Average heat loss coefficient		ULT=0.4~0.6W/(㎡.℃)
Loading Qty (piece)			40HQ
			8000

Vacuum tubes assimliate the advanced 3 layers of sputtering deposition of trivalent element technology, high borosilicate glass, gradual change of ALN/ALN-SS/CU selective complex absorptive coating. And these make vacuum tubes have high performance of absorptance and low reflection ratio. Through the interlayer, vacuum has a unique effect of thermo, with its temperature up to 380 Celsius degree of ideal sunning, performing a strong heating ability.

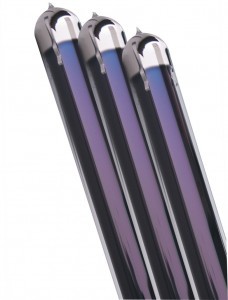

Borosilicate glass solar evacuated tube

Borosilicate glass solar evacuated tube Images
